Posts & Bases

                 U-Channel Posts                 Round Posts       Square Post          Post Reflectors
U-Channel Green or Galvanized              Round                       Square                    Post Reflectors

( Note: FedEx and UPS will deliver posts up to 8 foot long. Posts longer than 8 foot must ship via semi truck )

Green U-Channel Delineator Post

Green U-Channel Delineator Post

1.12 lb/ft Available in 4-, 6- or 7- foot lengths. Used for light-duty sign display and for road-side reflectors. Baked-enamel with 3/8-inch holes an inch apart.

Bundle of 50 – plus shipping (Call)
4-foot $10.50
6-foot $15.00
7-foot $16.50



 4-foot – $14.50
6-foot – $17.50
7-foot – $19.50
Green U-Channel Post, 2 lb/ft

Green U-Channel Post

2 lb/ft (Most Popular) Available in 3-, 8-, 10-  or 12-foot size with 3/8-inch mounting holes. Tapered on one end for easier installation.



Bundle of 50 – plus shipping (Call)
   3-foot $12.50
  8-foot $28.50
10-foot $36.50
12-foot $42.50


3-foot – $14.50
8-foot – $32.50
10-foot – $40.50
12-foot – $48.50


Galvanized U-Channel Delineator Post, 1.12 lb/ft

Galvanized U-Channel Delineator Post 1.12 lb/ft Available in 6-, 7- or 8- foot length. Hot-dipped galvanized (silver colored) finish promotes longer post life. Tapered at one end for easier installation, with 3/8-inch mounting holes.



Bundle of 50 – plus shipping (Call)
6-foot $16.50
7-foot $18.50
 6-foot – $18.50
7-foot – $22.50
Galvanized U-Channel Post, 2 lb/ft

Galvanized U-Channel Post

2 lb/ft Available in 3-, 8-, 10- or 12-foot sizes. 3/8-inch mounting holes and tapered at one end for easier installation.

Bundle of 50 – plus shipping (Call)
3-foot $14.50
8-foot $34.50
10-foot $42.50
12-foot $48.50



 3-foot – $16.50
8-foot – $42.50
10-foot – $54.50
12-foot – $66.50
2 3/8-inch Round Pipe Post

Round Pipe Post

2 3/8-inch outside diameter round galvanized pipe post. Available in 5-foot (for portable sign stand base) or stand-alone 8-, 10- or 12-foot length. 16 gauge, with .065-inch wall.



Bundle of 37 – plus shipping (Call)
  8-foot $38.50
10-foot $48.25
12-foot $58.50


5-foot – $29.50
8-foot – $48.50
10-foot – $58.50
12-foot – $68.50
Square Post

Square Post Top

1 3/4-inch 14 gauge perforated with 7/16-inch mounting holes. Available in 5-foot (for portable sign stand base), or stand-alone 8-, 10- or 12-foot length. Also can be inserted into 2-inch square 3-foot Anchor Post (12 gauge, shown below) to create break-away system.
Also available in 2-and 2 1/2-inch square sizes. Call for quote.

Bundle of 25 – plus shipping (Call)
  8-foot $48.50
10-foot $64.50
12-foot $78.50
 5-foot – $32.50
8-foot – $54.50
10-foot – $68.50
12-foot – $84.50
Square Post Anchor
Square Post Anchor

3-foot (2- or 2 1/4-inch) square 12-gauge perforated with 7/16-inch holes every inch. Accepts 1 3/4- or 2-inch square post top to create a break-away system. Connect top post to anchor with Corner Bolt or 3/8-inch Drive Rivet.

Bundle of 25 – plus shipping (Call)
3-foot X 2-inch square $24.50
3-foot X 2 1/4-inch square $26.50

 3-foot X 2-inch
Square Post Anchor

 $26.50

3-foot X 2 1/4-inch
Square Post Anchor

$29.50


Post Surface Mount Bases & Couplers
Round Pipe Post Base

Round Pipe Post Surface Mount Base
Round Pipe Post Stub

Cast-iron base designed for 2 3/8-inch outside
diameter round pipe post with four 5/8-inch holes for mounting to concrete. Used to permanently and securely install 8-, 10- or 12-foot pipe post. (Anchor bolts/nuts sold separately). 6 lbs
$54.50

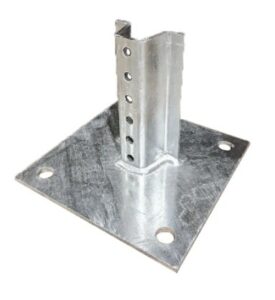

 U-Channel Surface Mount Base

U-Channel Surface Mount Post Base

U-Channel Stub

10-inch x 1/4-inch steel plate with four 1/2-inch
mounting holes welded to 10-inch tall accepts  2 lb/ft U-Channel stub with 7/16-inch holes at every inch. Supports attachment of 8-, 10- or 12-foot u-channel post to concrete (Anchor bolts/nuts sold separately). 10 lbs
$72.50

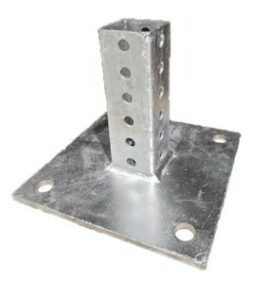

 Square Surface Mount Post Base

2-inch Square Stub
10-inch x 1/4-inch steel plate with four 1/2-inch mounting holes welded to 10-inch tall 2-inch square perforated post with 7/16-inch holes at every inch on all four sides. A 1 3/4-inch square post top telescopes into base. Supports attachment of 8-, 10- or 12-foot square post to concrete. (Anchor bolts/nuts sold separately). 10 lbs

$74.50

 Square Surface Mount Post Base

2 1/4-inch Square Stub
10-inch x 1/4-inch steel plate with four 1/2-inch mounting holes welded to 10-inch tall 2 1/4-inch square perforated post with 7/16-inch holes at every inch on all four sides. A 2-inch square post top telescopes into base. Supports attachment of 8-, 10- or 12-foot square post to concrete. (Anchor bolts/nuts sold separately). 10 lbs

 $82.50
U-Channel Surface Mount
U-Channel Surface Mount Base
Breakaway system for use with 2 lb/ft U-Channel Post installed with three bolts in concrete Base made of anti-rust galvanized cast gray iron, and withstands winds up to 120 mph NCHRP 350 crash-test compliant.
SU800S (Detail) – $154.50		 Square Post Surface Mount
Square Post Surface Mount Base
Breakaway system for use with 1 3/4-, 2- and 2 1/2-inch square post installed with three bolts in concrete. The surface mount base is made of anti-rust galvanized cast gray iron, and withstands winds up to 120 mph NCHRP 350 crash-test compliant.
S175S (1.75) (Detail) $154.50
S200S (2) (Detail) $158.50
S225S (2.25) (Detail) $160.50
S250S (2.50) (Detail) $162.50		 Round Post Surface Mount
Round Post Surface Mount Base
A breakaway system for use with 2 3/8-inch outside diameter round pipe post. Installs in concrete with three bolts. The surface mount base is made of anti-rust galvanized cast gray iron, and withstands winds up to 120 mph. NCHRP 350 crash-test compliant.

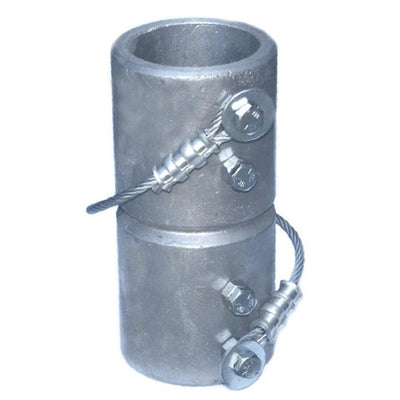

S238SR (8-16 ga.) (Detail) $194.50		 Round Post Coupler
Round Post Coupler
Allows top-to-anchor (in-ground) connection between two posts. Designed as a safebreak-away system for round posts Coupler is made of anti-rust galvanized cast gray iron, and withstands winds up to 120 mph. NCHRP 350 crash-test compliant.
S238R (13-16 ga.) (Detail) –$99.50

Post Accessories
Round Pipe Post Rain Cap - 2 3/8-inch$6.50 Acorn Rain Cap
$6.50
shorthandlepostdriver$158.50 longhandlepostdriver$216.50 Post Reflectors
$10.50
Flat Cap Acorn Cap
Rain Caps for 2 3/8-inch outside diameter round pipe post. Flat or Acorn style.		 Short-Handle Post Driver
for delineator (1.12 lb/ft) and 2 lb/ft U-Channel, square or round post.		 Long-Handle

 designed for 2 lb/ft U-Channel, square & round posts up to 12-foot. 38 lbs.


Post Reflectors
Aluminum 3 1/8 x 30-inch
reflective panel adds color to make post stand out. Improves visibility and safety.
Rain Cap for Square Post - 1 3/4-inch
$6.50		 uchanneldrivecap.jpg$32.50 uchanneldrivecap.jpg$32.50 Driveway Reflectors
Square Rain Cap
Decorative Pyramid-shape for Square Post. Two sizes: 1 3/4-inch or 2-inch		 Delineator Post Drive Cap
for 1.12 lb/ft U-Channel
Delineator Post. Protects top of post during installation. Prevents mushrooming.		 U-Channel Drive Cap
for 2 lb/ft U-channel post. Protects top of post during installation. Prevents mushrooming.		 Driveway Reflectors
6-inch diamond-shape
reflectors help identify house and forewarn motorists of obstacles. Improves visibility and safety.
